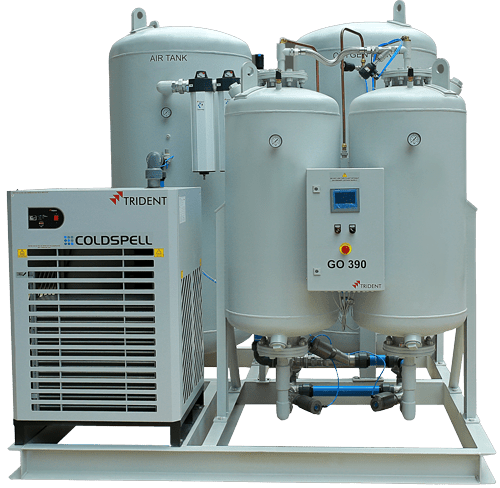

The atmosphere contains 21% oxygen. Through the PSA (Pressure Swing Adsorption) process, other gases are removed, producing oxygen with up to 96% purity. Using Trident Pneumatics Private Limited medical oxygen plant manufacturers, oxygen can be generated onsite in any hospital, clinic, or health care centre in a much more cost-effective manner.
Using the pressure swing adsorption method, oxygen is generated, and it is being used, thus enabling a health care center to be self-sufficient in meeting its oxygen demand. It is used in situ instead of cumbersome oxygen cylinders. The psa medical oxygen generator is also widely used in Pharma applications, Fisheries, Ozone generators etc.
The compressed wet air flows through the pre filter. The Liquid water particles get filtered by the filter. The filtered air flows into the adsorber tower filled with desiccant, where it loses all the moisture to the desiccant. Purified (Moisture and oil-free) air further passes through the series filter to achieve the desired quality level as per Breathing Standard.
In order to remove the moisture during the regeneration cycle, a small portion of dry air from the drying tower passes over the desiccant through the regeneration orifice. This results in the complete regeneration of the desiccant and makes it ready for the next cycle.
