Modular Aluminium Piping For Compressed Air Inert Gases Push Fit Type(Al to Eng plastic)

Application : Compressed Air,Vacuum, Nitrogen, Argon (OtherFluids & Gases Please Contact Us)

Key Features

  • Connection Type: Push Fit Type
  • Design Standards: ASME B 31.1/3
  • Alloy: Aluminium Alloy 6063 T5
  • Tolerance: Tolerance Std IS2763,IS3965,EN 755-2
  • Colour: Blue (RAL 5012) / Anodized Other Color On Request
  • Surface Finish: 60 Micron
Max Pressure Up to 20 Bar
Vacuum 29.32″ Hg
Temperature -20ꞏC To 200ꞏC
Request Quote

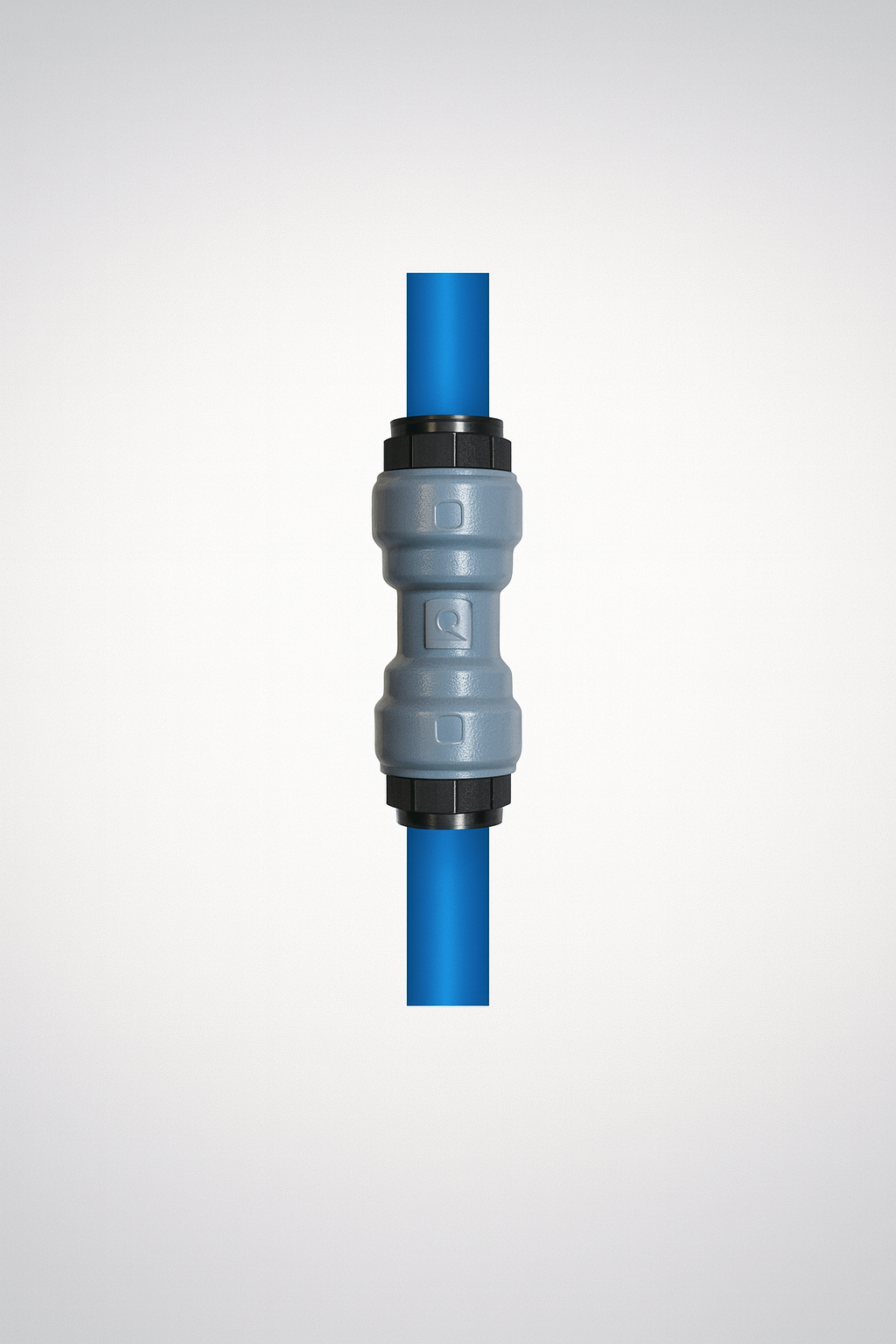

Modular Aluminium Piping Push Fit Al to Eng plastic
Modular Aluminium Piping Push Fit Al to Eng plastic View 2

Modular Aluminium Piping For Compressed Air Inert Gases Push Fit Type(Aluminium To Aluminium)

Application : Compressed Air, Vacuum, Nitrogen, Argon (OtherFluids & Gases Please Contact Us)

Key Features

  • Connection Type: Push Fit Type
  • Design Standards: ASME B 31.1/3
  • Alloy: Aluminium Alloy 6063 T5
  • Tolerance: Tolerance Std IS2763,IS3965,EN 755-2
  • Colour: Blue (RAL 5012) / Anodized Other Color On Request
  • Surface Finish: 60 Micron
Max Pressure Up to 20 Bar
Vacuum 29.32″ Hg
Temperature -20ꞏC To 200ꞏC
Request Quote

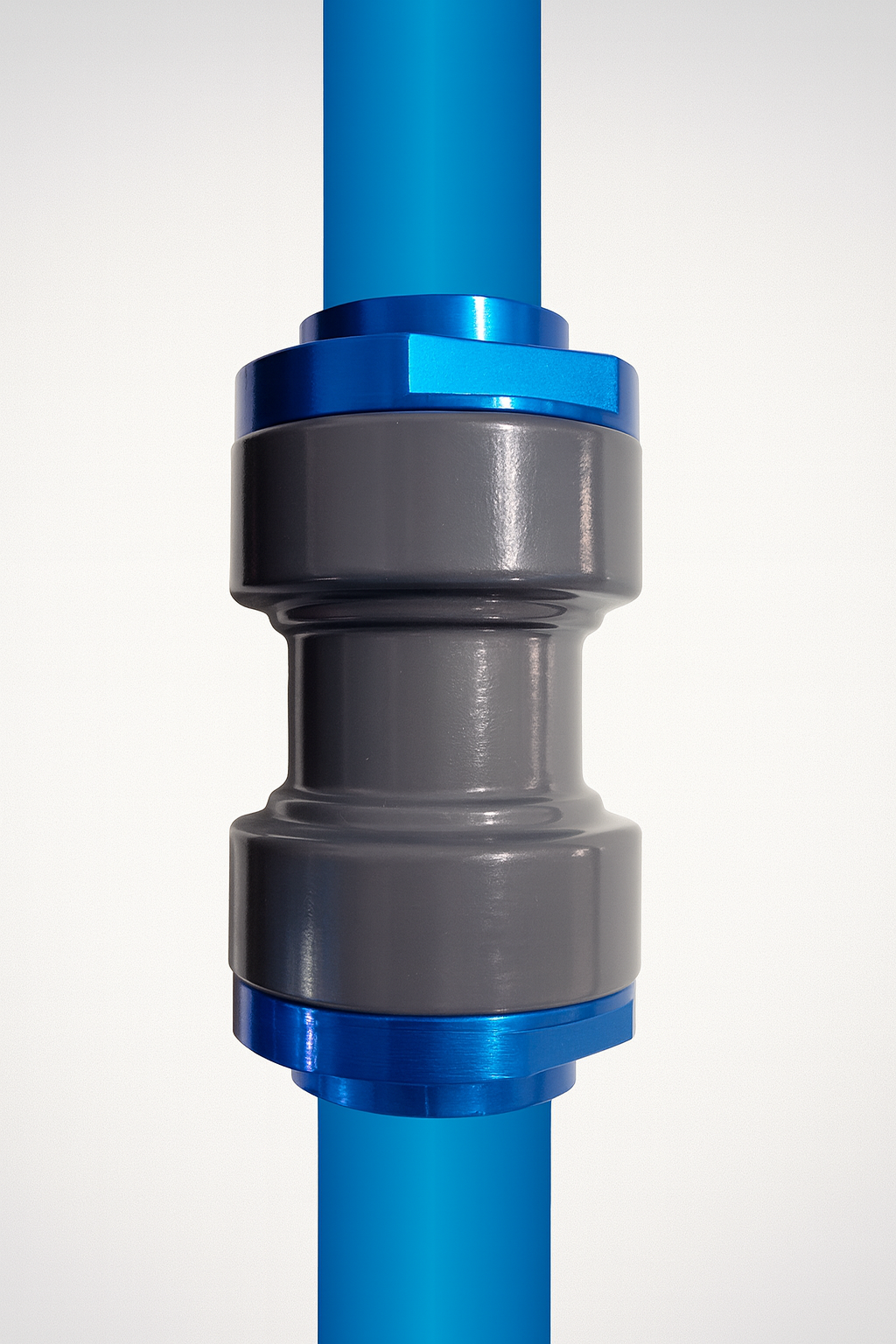

Modular Aluminium Piping Push Fit Al to Al
Modular Aluminium Piping Push Fit Al to Al View 2

Modular Stainless Steel Piping For Compressed Air Inert Gases Push Fit Type.(SS to Engg Plastic)

Material Of Construction : SS304 / SS316 / SS316L

Key Features

  • Connection Type: Push Fit Type
  • Certificate: ISO & CE
  • O Ring & Lip Gasket Material: HNBR / EPDM / VITON(optional)
  • Grab Ring: Spring Steel
  • Thread Standard: BSP (Matric)/NPT
  • Fitting Body Surface Treatment: Anodized
Max Pressure Up to 20 Bar
Temperature -20 C to 200 C
Quality Test 60 Bar
Request Quote
Modular Stainless Steel Piping SS to Engg Plastic
Modular Stainless Steel Piping SS to Engg Plastic View 2

Modular Stainless Steel Piping For Compressed Air Inert Gases Push Fit Type. (SS To SS)

Material Of Construction : SS304 / SS316 / SS316L

Key Features

  • Connection Type: Push Fit Type
  • Certificate: ISO & CE
  • O Ring & Lip Gasket Material: HNBR / EPDM / VITON(optional)
  • Grab Ring: Spring Steel
  • Thread Standard: BSP (Matric)/NPT
  • Fitting Body Surface Treatment: Anodized
Max Pressure Up to 20 Bar
Temperature -20 C to 200 C
Quality Test 60 Bar
Request Quote

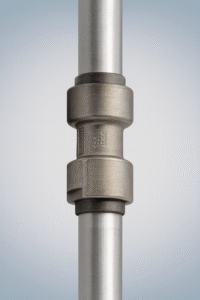

Modular Stainless Steel Piping SS to SS
Modular Stainless Steel Piping SS to SS View 2

Modular Aluminium Piping For Compressed Air Inert Gases Crimping Type.

Material Of Construction : Aluminum Body (Quickair), PA6 End Connector

Key Features

  • Connection Type: Integrated Fitting Type
  • Certificate: ISO & CE
  • O Ring & Lip Gasket Material: HNBR / EPDM / VITON(optional)
  • Grab Ring: Spring Steel
  • Thread Standard: BSP (Matric) / NPT
  • Fitting Body Surface Treatment: Powder Coated / Anodized
Max Pressure Up to 40 Bar
Temperature -20 C to 200 C
Quality Test 60 Bar
Request Quote

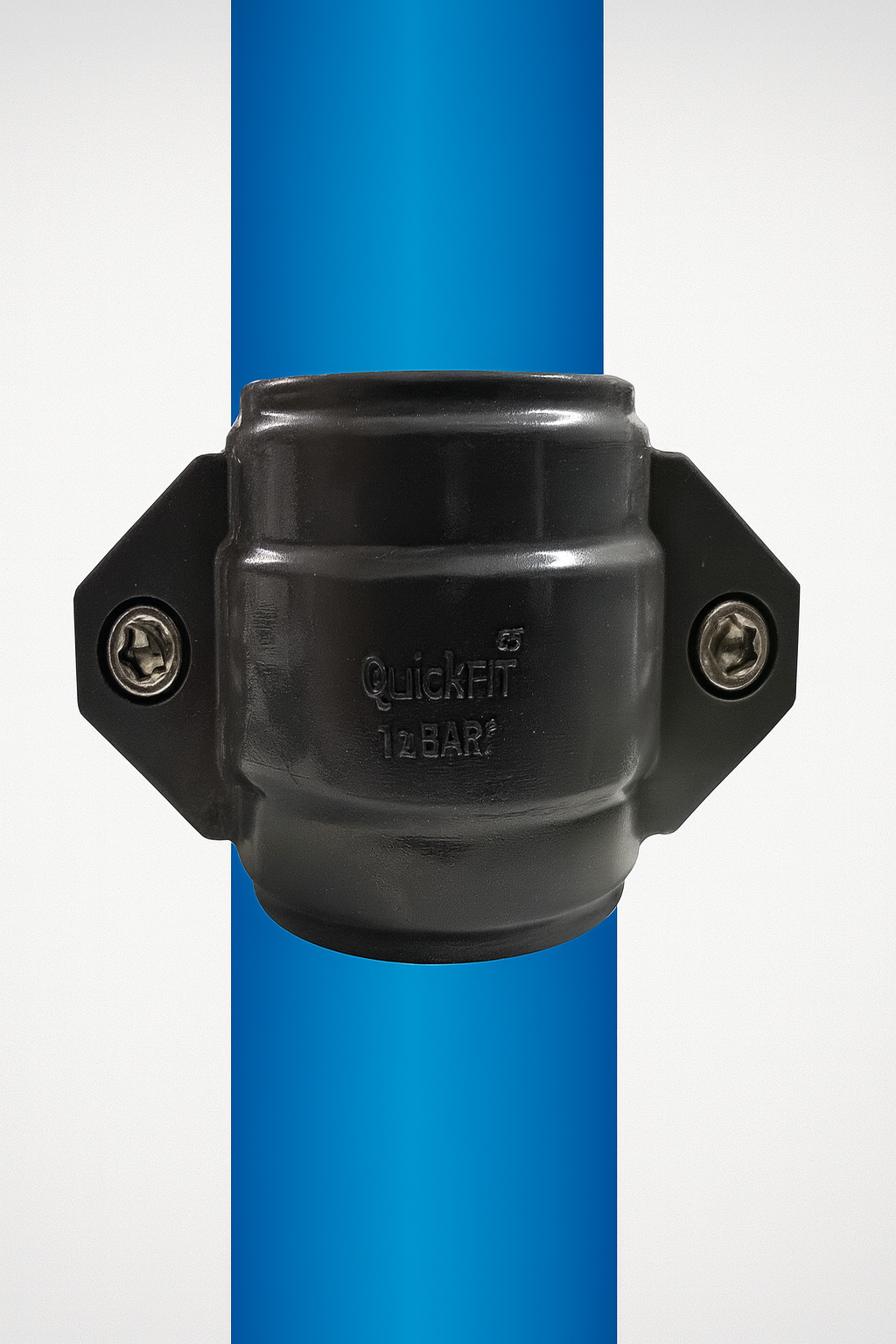

Modular Aluminium Piping Crimping Type
Modular Aluminium Piping Crimping Type View 2

Modular Stainless Steel Piping For Compressed Air Inert Gases Crimping Type.

Material Of Construction : SS304 / SS316 / SS316L

Key Features

  • Connection Type: Integrated Fitting Type
  • Certificate: ISO & CE
  • O Ring & Lip Gasket Material: HNBR / EPDM / VITON(optional)
  • Grab Ring: Spring Steel
  • Thread Standard: BSP (Matric)/NPT
  • Fitting Body Surface Treatment: Powder Coated / Anodized
Max Pressure Up to 40 Bar
Temperature -20 to 200 C
Quality Test 60 Bar
Request Quote

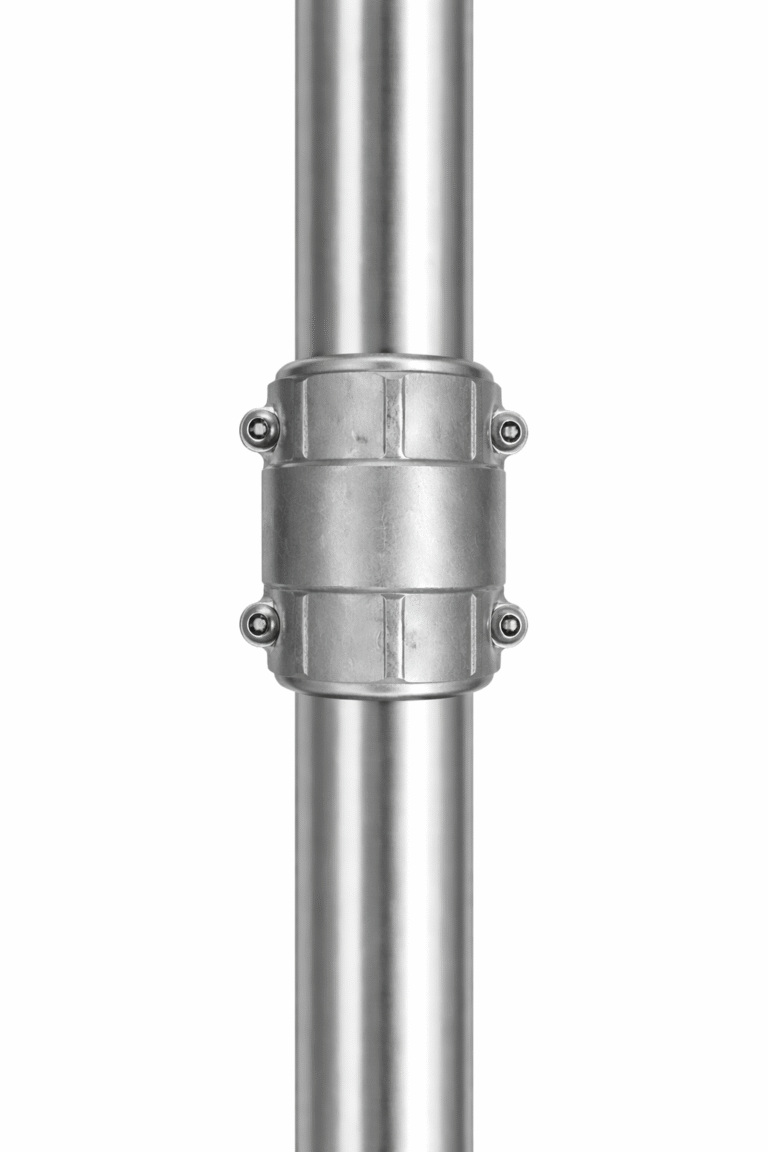

Modular Stainless Steel Piping Crimping Type
Modular Stainless Steel Piping Crimping Type View 2

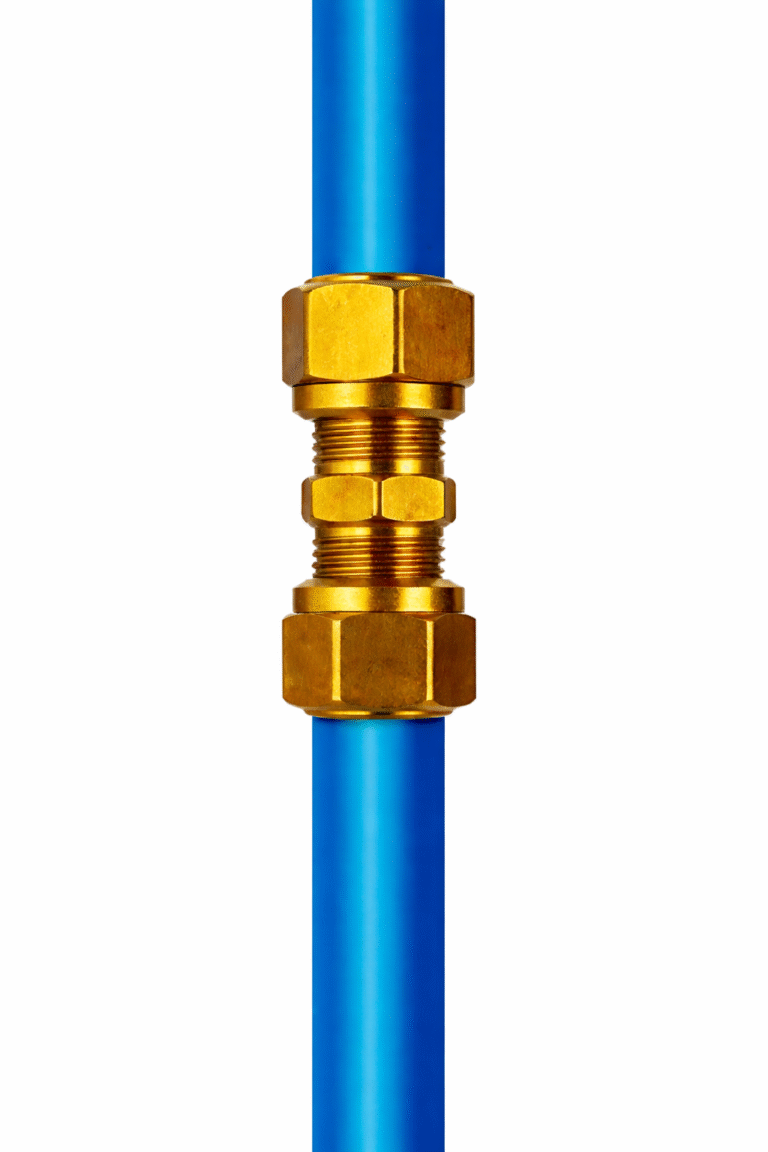

Modular Pex With Brass Fitting For Compressed Air Inert Gases Push To Fit Type.

Material Of Construction: Brass Fitting (Quickpex) | Size: 20, 25, 32mm.

Key Features

  • Connection Type: Push To Fit Type
  • Certificate: ISO & CE
  • O Ring & Lip Gasket Material: HNBR / EPDM
  • Thread Standard: BSP (Matric)/NPT
Max Pressure Up to 12 Bar
Service Temp 90ꞏC
Quality Test 18 Bar
Request Quote
Modular Pex With Brass Fitting For Compressed Air Inert Gases Push To Fit Type
Modular Pex With Brass Fitting For Compressed Air Inert Gases Push To Fit Type View 2

Aluminium Extrusions Products

Applications: Structural frameworks, cleanrooms, assembly systems.

Key Features

  • Profile Series: 20, 30, 40, 45, 50, 60, 80, 90, 100.
  • Accessories: Bolts, brackets, connectors, nuts, joints.
  • HEPA-filtered clean booth systems for pharmaceuticals and electronics.
  • Customizable modular designs for versatile applications.
Materials Corrosion-resistant aluminium extrusions.
Standards ISO 9001:2015.
Load/Deflection Guides for profile selection.
Request Quote

Electro Static Discharge Prevention (ESD)

Applications: Electronics assembly, cleanrooms.

Key Features

  • Products: PCB trays, crates, wrist straps, ESD shoes, mats, resistivity meters.
  • Focus: Component protection, worker safety, cleanroom compatibility.
  • Testing Equipment: Surface resistivity meters, wrist strap/footwear testers.
Surface Resistance 10^3 to 10^9 Ohm
Materials Antistatic plastics, SS, PVC, polyester.
Standards ISO 9001:2015, ESD-compliant.
Request Quote

Protork A 300 & M 300 Series Ball Valves

3-piece design for easy maintenance

Key Features

  • Regular and full bore options (1/4’–4′)
  • Fire-safe design per API 607
  • Manual or actuated operation
  • Special variants: diverter and cryogenic valves
Materials WCB, CF8, CF8M
Temp Range -30°C to 300°C
Design 3-piece design
Request Quote

Torquemate Pneumatic Actuators

Double-acting and spring-return configurations

Key Features

  • Modular spring packs for easy conversion
  • Compatible with limit switches and positioners
  • Torque outputs for small to large valves
Body Material Extruded aluminum
Standards NAMUR and ISO
Configuration Double-acting / spring-return
Request Quote

Protork A600 & A800 Series Ball Valves

#600 flanged and #800 screwed/socket/butt weld ends

Key Features

  • Regular and full bore options (1/4’–4′)
  • Fire-safe design per API 607
  • Antistatic devices for safety
  • Locking mechanisms to prevent accidental movement
Materials CF8, CF8M, WCB
Standards ISO 5211 compliant
Bore Regular and full bore
Request Quote

Protork AS 150, AS 300, AT 150 & AT 300 Series Ball Valves

2-piece flanged design

Key Features

  • Regular and full bore options (1/2’–8′)
  • Hand, gear, pneumatic, or electric actuation
  • Seat options: PTFE, PEEK
Materials CF8, CF8M, WCB, Duplex
Standards ASME B16.5 and API 607
Design 2-piece flanged
Request Quote

Protork BFV Series Butterfly Valves

Wafer butterfly valve design

Key Features

  • Single-stem design for reliability
  • Lever, gear, pneumatic, or electric actuation
  • Sizes: 25mm to 600mm (larger on request)
Materials Cast iron, CF8, CF8M
Pressure Ratings PN 10/16
Temp Range -20°C to 180°C
Request Quote

Protork Valve Automation System

Turnkey automation with PLC and SCADA

Key Features

  • Ball valves (#150, #300, #800) and butterfly valves
  • Pneumatic and electric actuators
  • Limit switch boxes and positioners
  • Valve manifolds for modular control
  • Remote control and monitoring
  • Safety systems with automatic shutdown
Type Turnkey automation
Actuation Pneumatic and electric
Control PLC and SCADA
Request Quote
