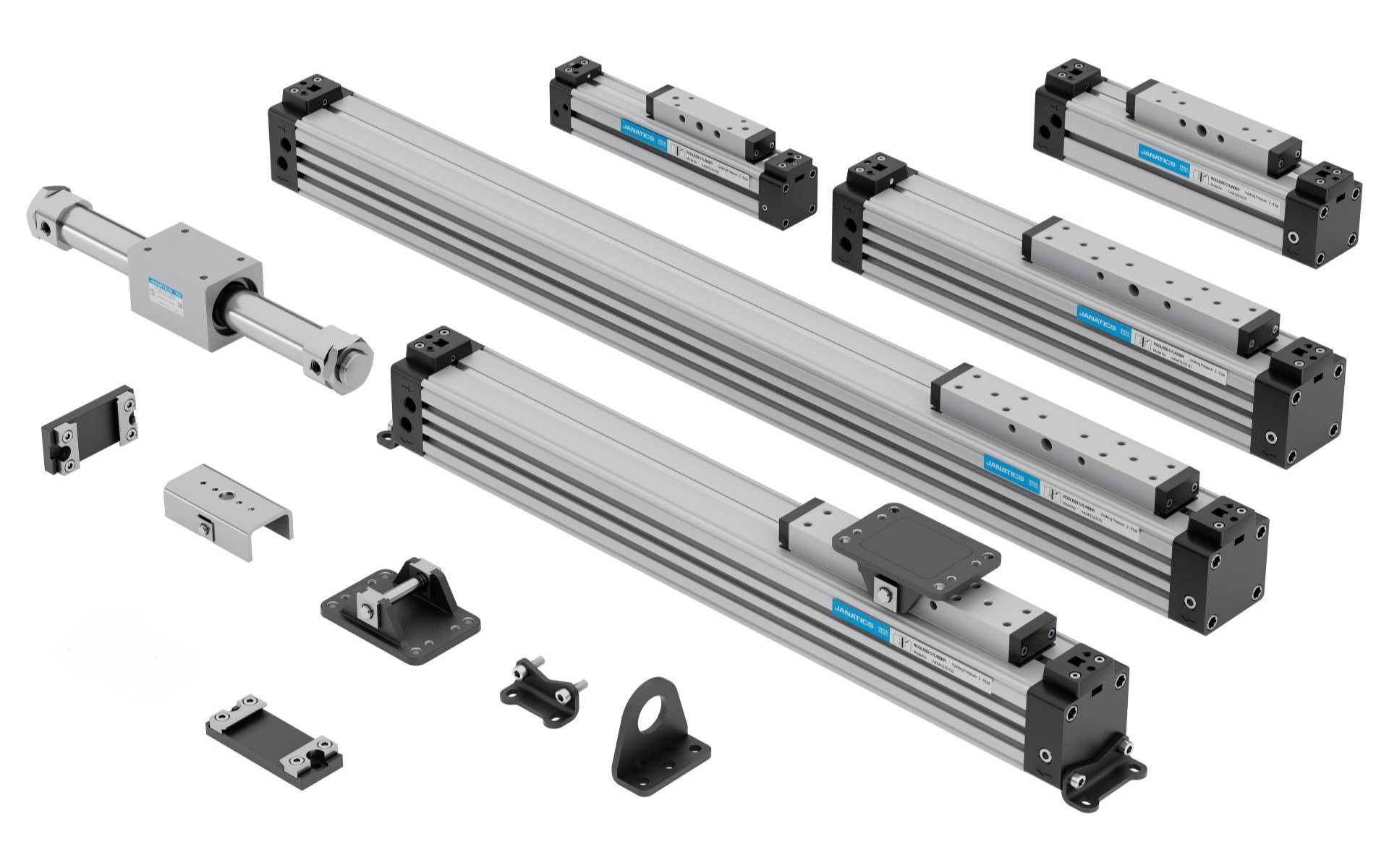

A Janatics Rodless Cylinders are of two varieties Rodless and Magnetically Coupled Rodless Cylinder. A Pneumatic Rodless cylinder provides linear motion without the use of a projecting piston Rod. Pneumatic rodless cylinder uses an internal piston that is mechanically or magnetically linked to an external carriage moving the load along the cylinder length.
Janatics Mechanically linked Pneumatic rodless cylinder, Carriage moves with a slot and sealing band. The carriage moves linearly as the piston moves. Janatics Rodless Cylinder allows long stroke, occupying minimal space, eliminating issues like rod buckling or excess extension. Unlike Rod cylinders eliminates side loading issues and rod flex.
Reliable precise linear motions with the capability to be mounted in various orientations. With magnetic piston for position sensing. Adjustable Cushioning provided at both ends. Air connection can be given in any of the three Sides. It Can be installed in any position.
