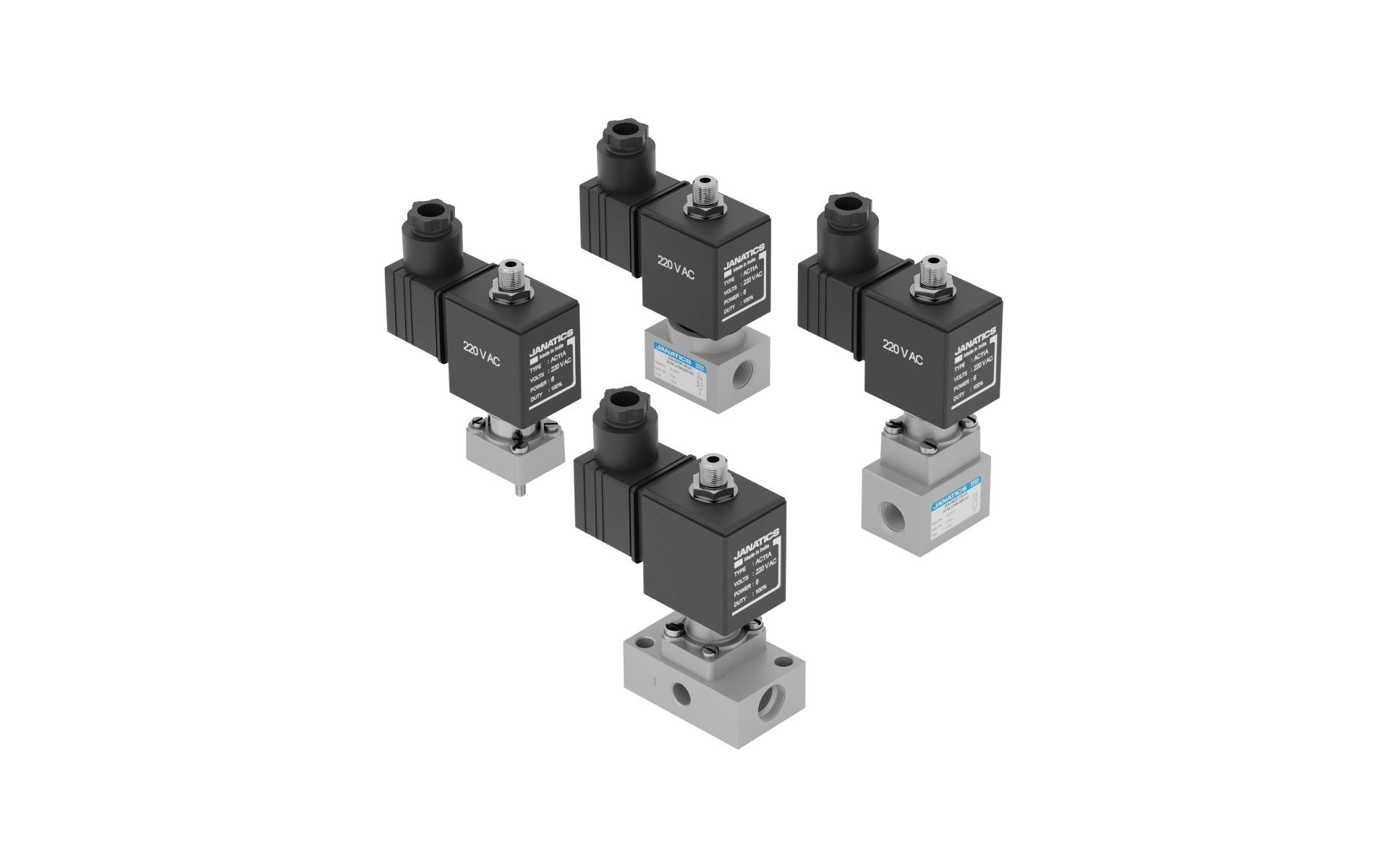

Solenoid Valve - E Series

Solenoid Valve - E Series

J Series Direct Acting Solenoid Valves:
Janatics J Series valves are poppet type, operated by solenoid – Electrical signal. Direct acting Solenoid Operated Direction Control Valves includes 2/2 way and 3/2-way options for controlling air flow, in the required direction.

Types:

• 2/2 Normally Closed - Ported
• 3/2 Normally Closed – Ported and Manifold mountable
• 3/2 Normally Open – Ported

Available Series: E1, E2, E4, E5
Available Types: Ported & Manifold Mountable

In Manifold mountable Series for Operating the solenoid valve Push and Turn to lock Type Manual Operator provided. All the solenoid operated valves have Three types of coils with 32mm, 22mm and 17mm width.

Standard Coil - Recommended Coil Voltages:

AC: 24, 48, 110, 220V
DC: 12, 24, 48, 110V

Request a Quote
