FRC

FRC

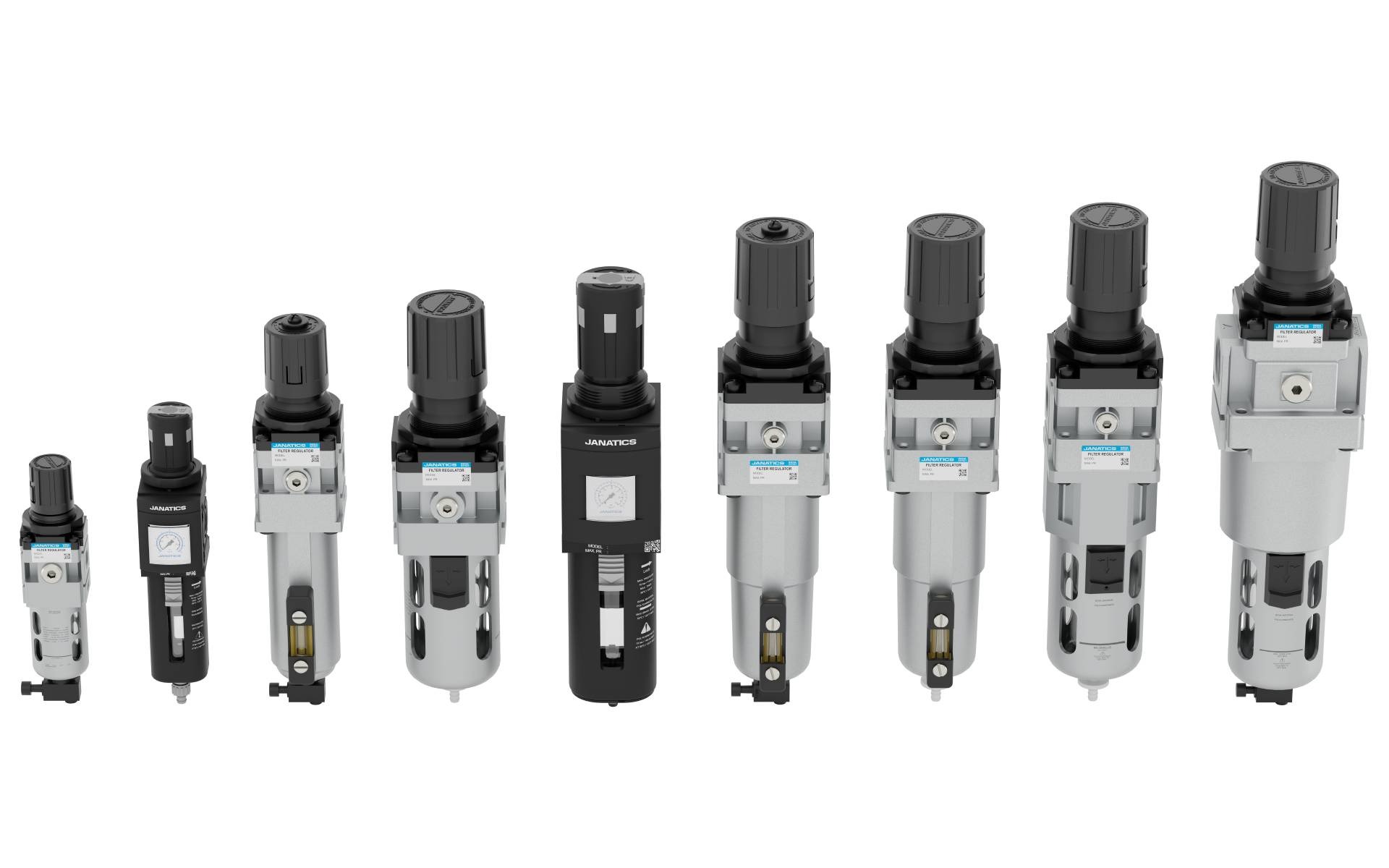

Janatics Filter Regulator Combination (FRC) integrates an Air filter and an Air Regulator into a single unit to get clean air with regulated pressure. Ideal for space saving installation. The air gets filtered by the Filter element and the pressure regulated by the regulator knob. These FRC are having bronze filter element / polyamide filter element with separator and shield for efficient moisture separation. The regulator is diaphragm operated, relieving type. Balanced poppet and Venturi are provided. Non-Return Valve (NRV) provided for air flow in reverse direction.

Janatics FRC Combination has the following models:

• FRC with Polycarbonate bowl and bowl guard
• FRC with Metal Bowl
• FRC with Metal Bowl with Indicator
• FRC with Tamper Proof
• FRC with Polycarbonate bowl and polyamide bowl guard

In these FRC for draining the water Manual Drain, Semi Auto Drain and Auto Drain are fitted in the bowl assembly.

Mounting: Filter can be mounted in line using the IN / OUT ports. Mounting bracket is recommended to mount the Filter. Panel Mounting also possible with the provided thread. Modular mounting recommended.
