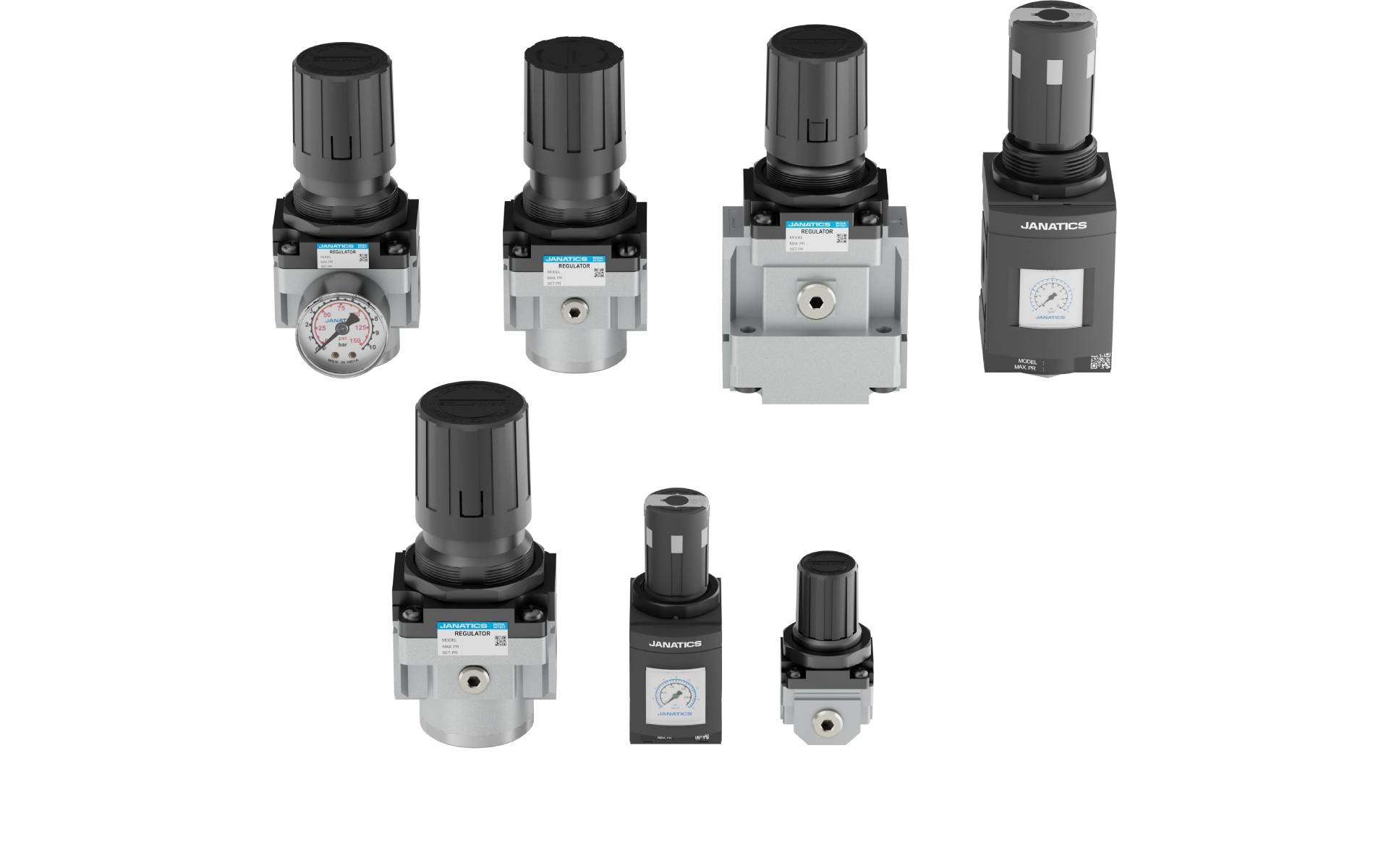

Janatics Regulator is an Air Pressure Regulating device used for setting / controlling the Compressed air pressure based on the circuit requirement. Function of an Air regulator is to maintain a constant secondary pressure (outlet) irrespective of the fluctuations in the primary pressure (inlet).
• Diaphragm operated relieving type. Balanced poppet given for pressure compensation.
Venturi provided for flow compensation. Built in non-return valve allows free air flow
in reverse direction, when the inlet air is reduced by and below the set pressure.
• Non-raising press to lock adjusting knob for locking at any set pressure. Suitable for
panel mounting. Bracket recommended for mounting. Modular mounting also recommended.
• In R1 and R2 Series Regulators Round Type Pressure Gauge can be fitted for the
required pressure range. In R3 Series Flush Type Pressure Gauge in built can be given
for the required pressure range.
• In R3 Series Regulator Padlock can be provided for Tamper Proof. Bracket recommended
for panel mounting and standard mounting separately.
• Conforms to ISO 6953-1.
• Regulator
• Regulator with Venturi
• Regulator with Venturi and NRV
• Regulator with Tamper Proof
• Precision Regulator
• Proportional Pressure Regulator
