Shut Off Valve

Shut Off Valve

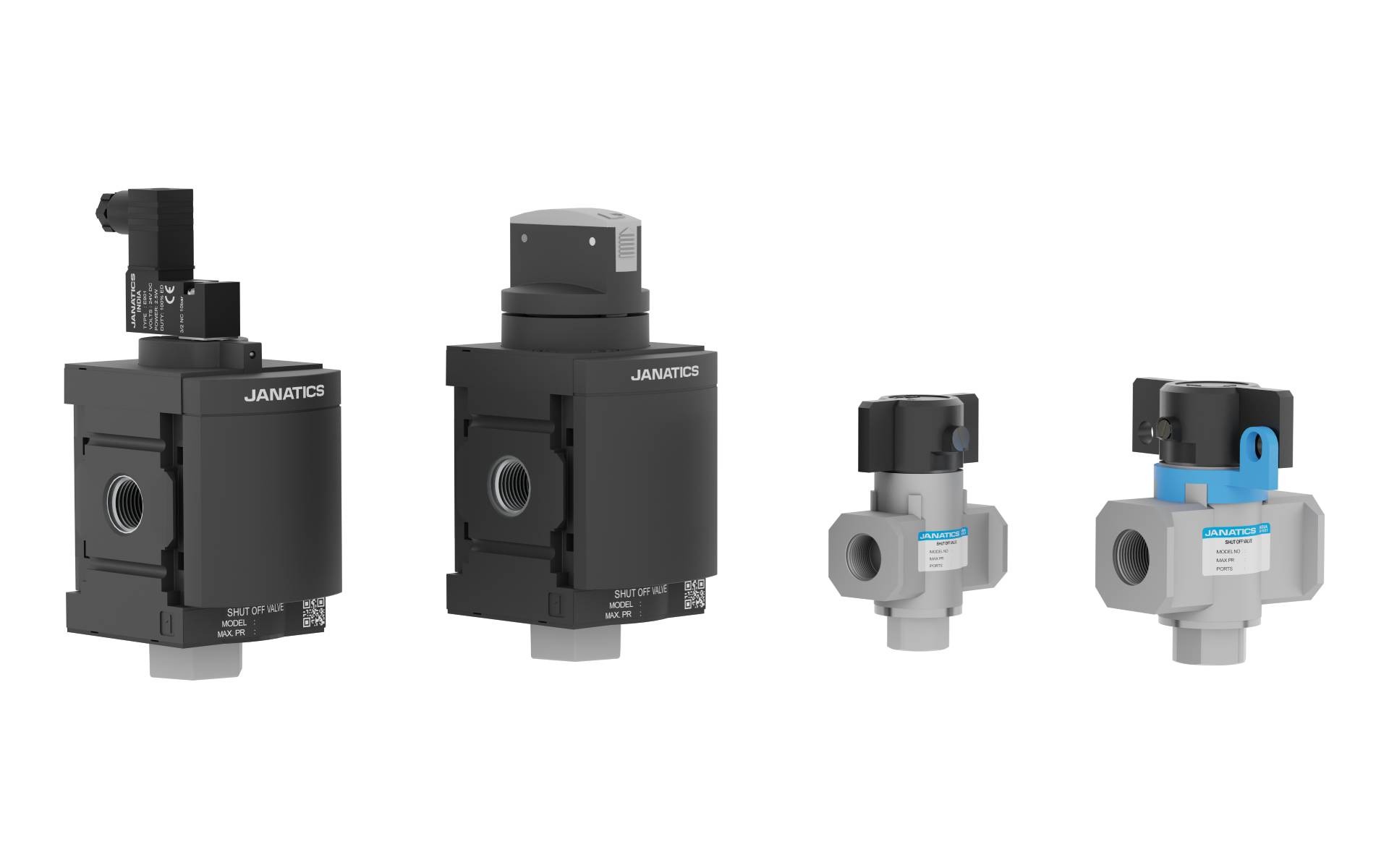

Janatics Shut Off Valve stops or controls the flow of compressed air in a pipe. 3/2 way shut off valve is used with Filter, Regulator and Lubricator in pneumatic circuits for supply control and exhausting the system air.

Available Series:

• GS2
• GS4 (Light Weight Series)

3 port 2 position, normally closed type. Suitable for Modular mounting with FRL inline . For locking in Manual model, Padlock provision option available to prevent unauthorized operation change in both the models. GS2 series with Manual operation. In GS4 series Manual type and Electrical (Solenoid operated). Flush type pressure gauge available for line pressure indication. To fix threaded type pressure gauge adaptor plate with thread option available. Front cover option available. Quick release bayonet type bottom plug. Clamp option also available. Exhaust port can be fitted with silencer to reduce the noise. The silencer material sintered bronze or plastic.

Applicable sizes:

• GS2 Series - G1/4, G3/8, G1/2
• GS4 Series - G1/4 & G1/2

Working Pressure Range:

GS2 - Manual - 0 -10 bar

GS4 - Manual - 0 -10 bar (with Pressure gauge and adaptor plate)
Manual - 0-12 bar (Standard)
Electrical – 2 to 10 bar
