Janatics DY2 Angle Seat Valve is a poppet type, 2/2-way normally closed, air pilot operated valve. The working medium recommended are air, water, hot water, steam and inert gases. When the air is given in the pilot port, the IN and OUT are connected to give flow. When the pilot air is disconnected automatically returns to normal position in which IN and OUT are disconnected.
Available sizes: G1/2, G3/4
Maximum working Pressure:
• For G1/2 - 0 to 10 bar
• For G3/4 - 0 to 16 bar
Pilot Pressure: 3 to 7 bar

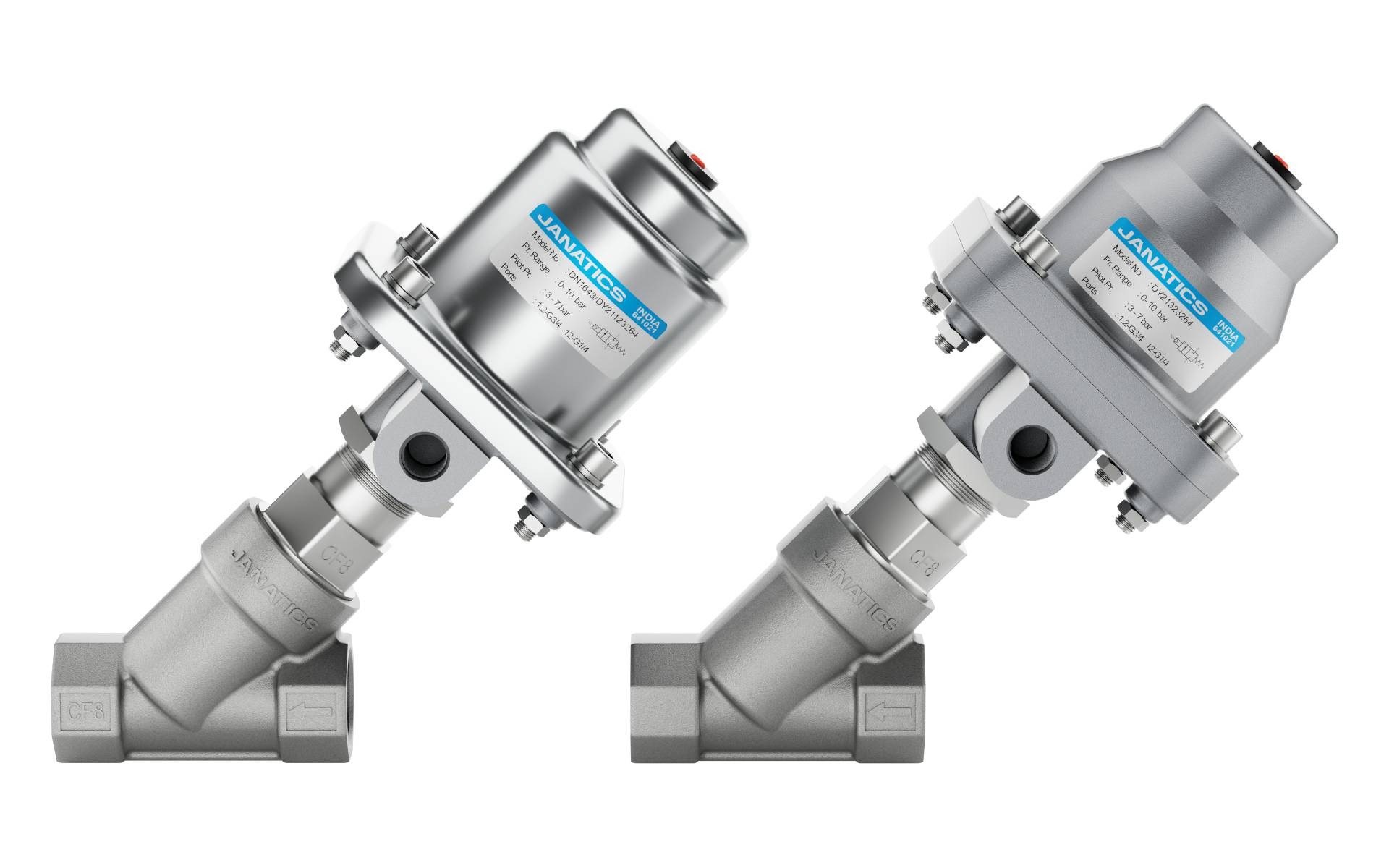

The valve actuated condition can be identified by the indicator shown on the top. The Pilot side top cover is available in aluminium casting and sheet metal.
