Compact Valves

Compact Valves

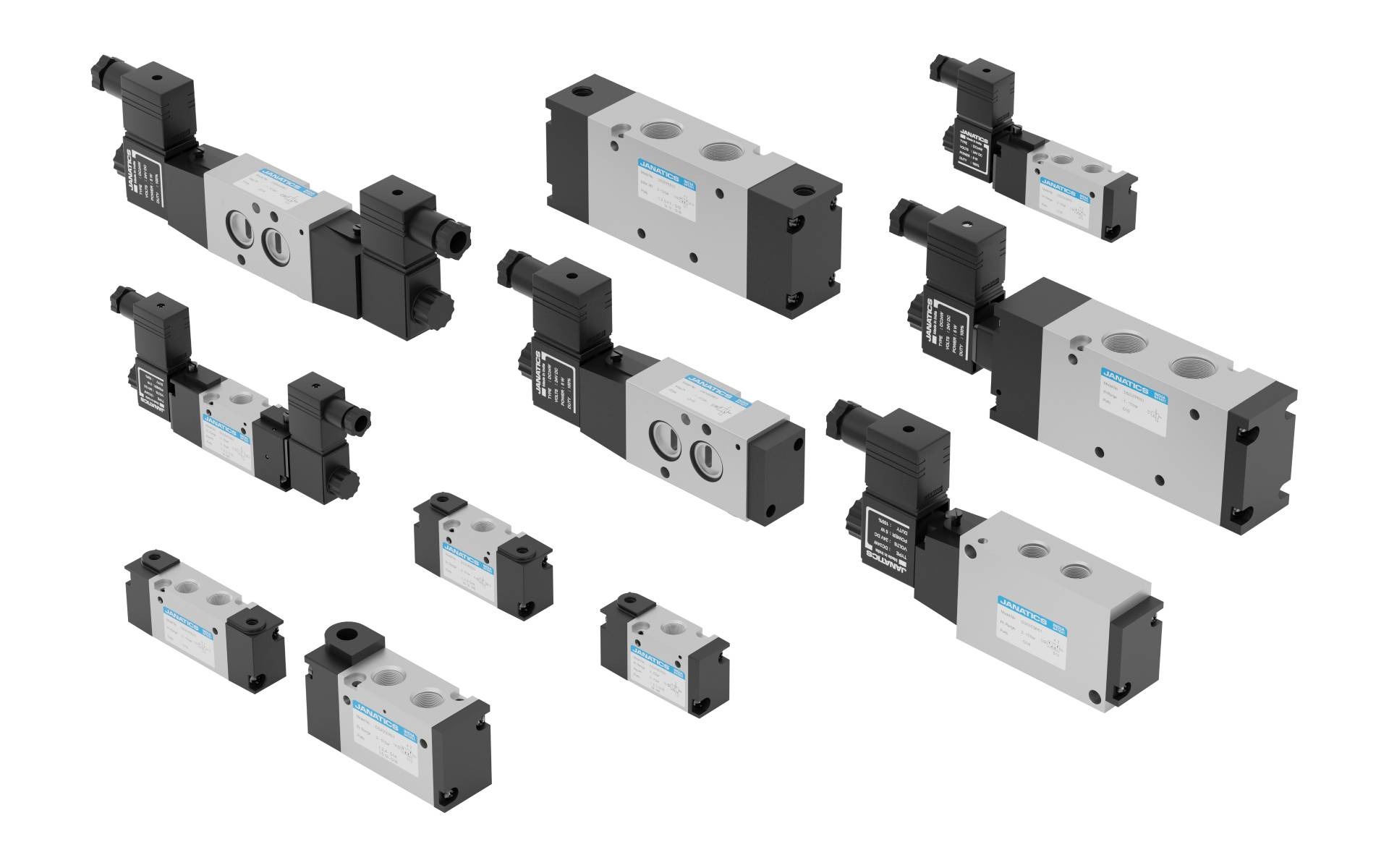

Janatics compact valve, is a direction control valve with spool type design. It is a Pilot operated Valve. For Pilot operation the valve is fitted with Solenoid (Electrical) Pilot, Air Pilot etc., This spool type direction control valve used in pneumatic systems to regulate the direction of compressed air. The main component is a cylindrical spool that moves inside a sealed valve body opening or blocking the ports to route the air through different paths depending on the spool positions. The movement of the spool is controlled by solenoid Pilot operated valve, springs, pressurized air etc.,

For Electrically operated valves (Solenoid) and to operate the solenoid side, Manual operators provided. “Push” Type and “Push & Turn” to lock type to operate the Pilot valve without electrical supply.

• DS2
• DS3
• DS5
