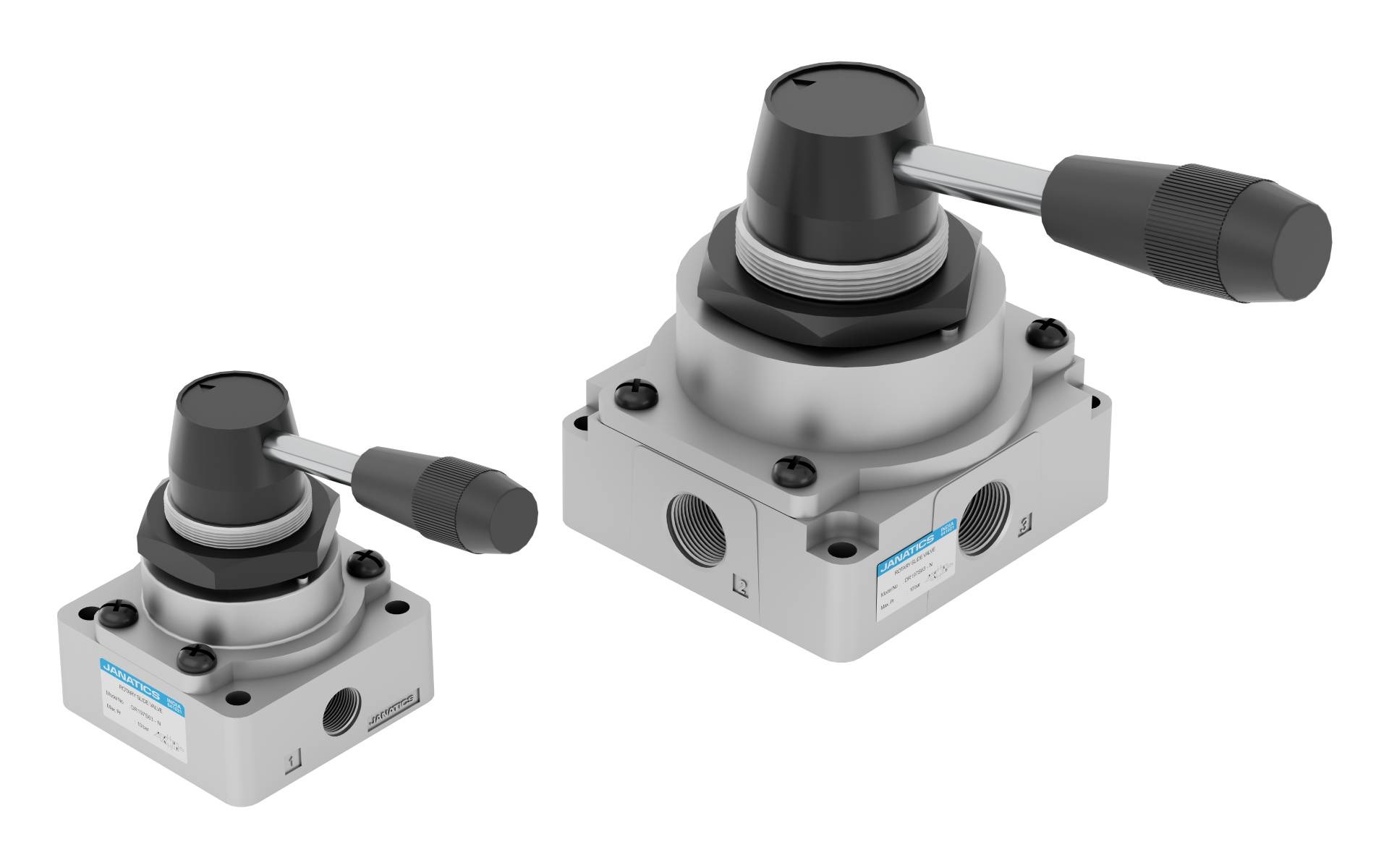

Janatics Rotary slide valve
Janatics Rotary slide valve is a Rotary type actuation valve. This type of valves have 4
ports radially. By operating the hand lever in radial path the ports are connected for
the flow requirement. Available Models are,
• DR1
• DR2
In DR1 we have 4 ports and 3 position valves 2 types.
• 4/3-way hand lever operated - Mid position blocked.
• 4/3-way hand lever operated - Mid position Exhausted.
These valves have detent to hold the hand lever in the required position. The hand lever can be mounted “inlet port side†or “Exhaust port side†according to the requirements.
