Solenoid Valve - EL & DP1 Series

Solenoid Valve - EL & DP1 Series

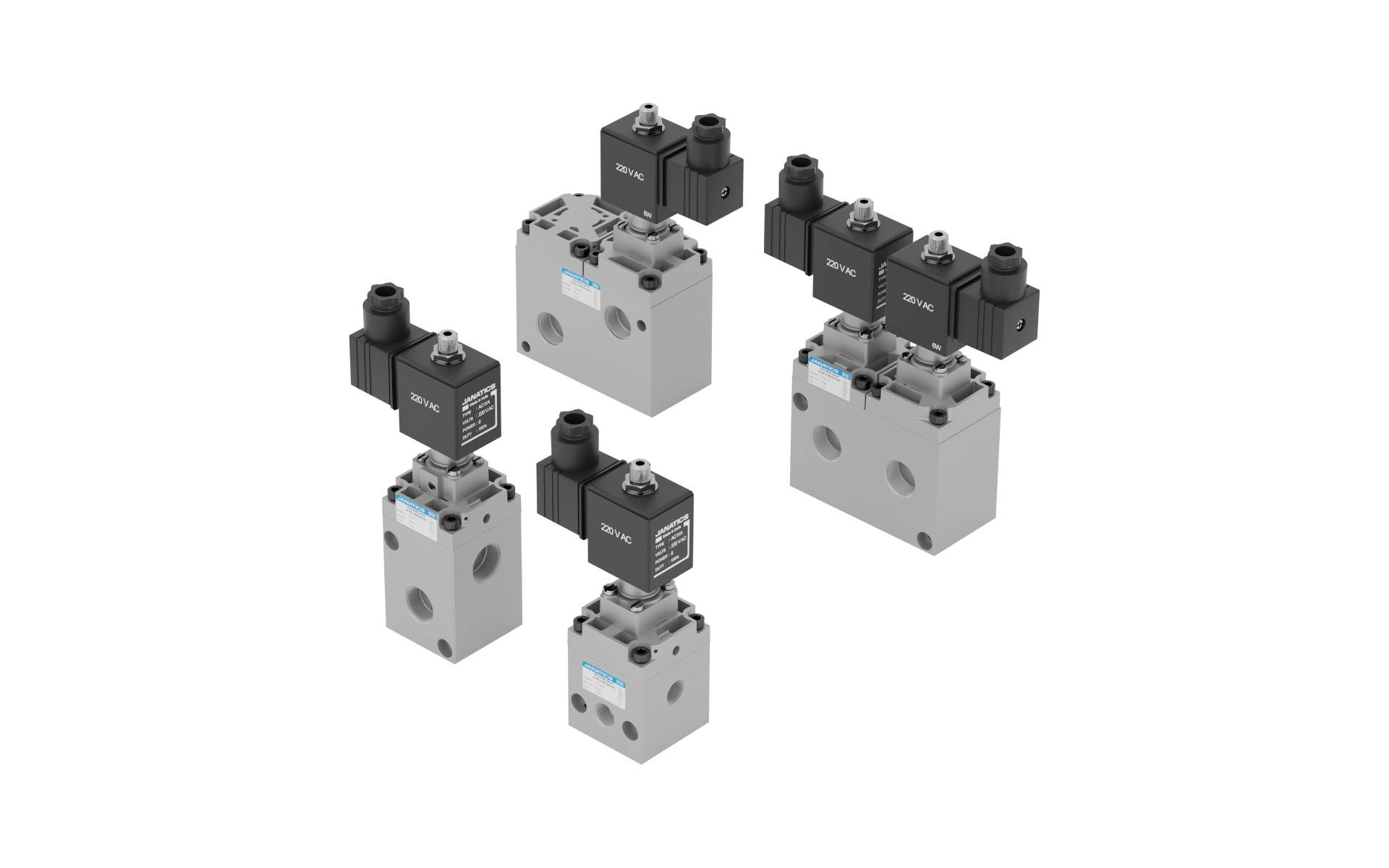

Janatics EL1 & EL2 Series, Diaphragm operated poppet type valves consisting of main valve with poppet construction and pilot valve operates the diaphragm for direction change. We have four types of valves.

• 3/2 NO
• 3/2 NC
• 5/2 Single solenoid
• 5/2 Double solenoid.

Available Sizes: G1/4 & G1/2
All the solenoid operated valves have coil with 32mm width.

Standard Coil - Recommended Coil Voltages :

AC: 24, 48, 110, 220V.
DC: 12, 24, 48, 110V.
